Our Snowploughs

Call us now:

01899 220020

Blade Ploughs - Light Duty

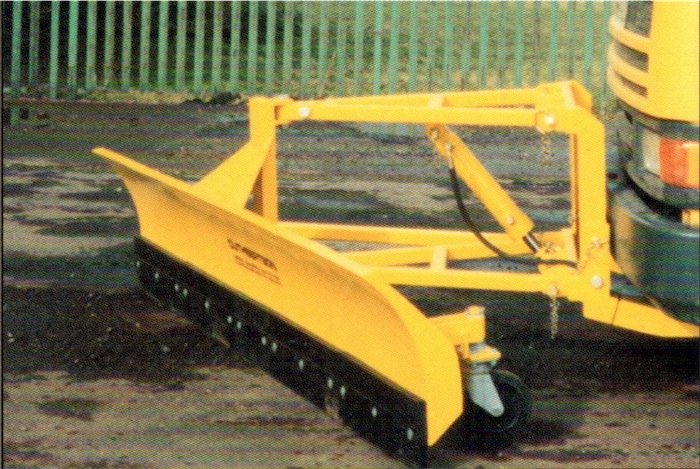

Light Duty 2745 x 600

Longevity of service encompassing a light weight design were the objectives for the Light Duty Cuthbertson Snowplough. At 2750mm wide x 600mm high the LD is available with steel or polymer breast plate mounted onto its steel skeleton giving this ‘plough the strength and rigidity to carry out its duties. Reversible rubbers are bolted onto the business end of the plough to complete the package.

Standard Light Duty Specification Includes:-

  • All steel or steel skeleton c/w polymer breast plate construction.
  • Top and bottom ‘Y’ brackets to suit WM1A fitting.
  • Long stay bar for adjustment to allow left or right snow shedding.
  • Fully galvanised wear edge clamp strip.
  • 200 × 25mm section rubber edges.
  • Height adjustable HD 200mm Ø, 360° swivel castors & mounting brackets.
  • Galvanised blade support legs.

Options include:-

  • Din (N° 3 or N°5) – WM1A Interface complete with D.A. ram.
  • Power angle rams to allow remote left/right slewing.
  • Screw adjustable castor assembles fitted with HD 5 stud hubs
  • 400 × 4 × 8 ply foam filled tyres to allow high speed ‘ploughing (35mph).
  • Edge marker poles.
